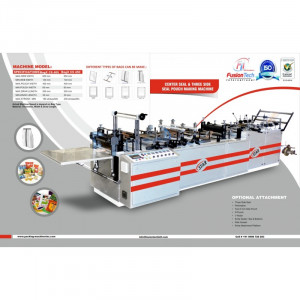

CENTER SEAL POUCH MAKING MACHINE - BAG EX CS405A

AvailabilityIn Stock
CategoryBag Making Machine
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

CENTER SEAL POUCH MAKING MACHINE - BAG EX CS405A Details


TECHNICAL SPECIFICATION:

Web Width (Lay-Flat Sheet Width) : Maximum 850 Mm & Minimum 170 Mm
Draw Length                       : Maximum 500 Mm & Minimum 50 Mm
Off-wind Reel Diameter : 500 Mm
Film Thickness : Maximum 150 Microns & Minimum 30 Microns
Pouch Width : Maximum 400mm& Minimum 75mm
Machine Speed : 250 Strokes / Min. ( Depending On Pouch Type, Material, Thickness, Width And Draw Length)
Total Connected Load : 7.5 KW
Electrical Power : 3 Phase 415VAC, 50 HZ
